Views: 0 Author: Site Editor Publish Time: 2026-05-19 Origin: Site
How can industrial operators stop filtration systems from clogging up with scale and bio-fouling? Encrustation causes low flow rates, pump strain, and high energy bills. Standard screens accelerate mineral buildup, but a wedge wire screen provides an engineering fix. In this post, you will learn how its geometry solves these costly filtration problems.
● The unique V-shaped wire profiles touch particles at only two small points to prevent mineral entrapment.
● Inwardly widening continuous slots allow particles to pass through freely without causing internal blockages.
● High open area distribution lowers the fluid entrance velocity to reduce chemical precipitation and scale buildup.
● The absence of horizontal cross-rods eliminates physical anchor points where bacteria and scale can attach.
● Premium stainless steel alloys and surface finishes like electropolishing drastically lower micro-level adhesion.
Traditional mesh wire screens have flat surfaces or woven intersections where particles easily lodge. Once a particle gets stuck, it forms a base for mineral crystals to grow. A wedge wire screen uses a triangular profile wire instead.
This design creates a specific two-point contact for any solid material. Because the wire tapers downward, particles only touch two narrow edges on the outside face of the screen. Without a large surface area to grip, solids cannot wedge themselves tightly into the openings. This mechanical design keeps the screen surface clear, which stops minerals like calcium carbonate from building up around trapped particles.
Standard perforated pipes or woven wire filters have straight or rough paths through their openings. These paths create tiny dead zones where fluid stalls out. Stagnant water triggers mineral precipitation instantly.
Wedge wire profiles feature slots that widen progressively toward the interior side of the pipe. This geometry creates an inside-out enlargement effect. Any particle that passes through the outer slot width falls completely free into the internal flow stream. No particles can get trapped halfway through the filtration boundary, which keeps the flow paths entirely open over long periods of operation.
High fluid velocity creates major pressure changes across a filtration barrier. When water moves too fast through small openings, it causes dissolved gases to release, which directly speeds up mineral scale.
Wedge wire screens solve this issue by offering a much higher percentage of open area compared to slotted casings. By spreading the intake across a large, continuous slot area, the actual entrance velocity of the fluid drops significantly. Slower intake speeds prevent the critical pressure drops that cause dissolved minerals to fall out of solution, keeping the screen clean.
Woven wire filters use interlocking horizontal and vertical wires to create a screen structure. These intersection points create thousands of tiny corners where water cannot flow freely.

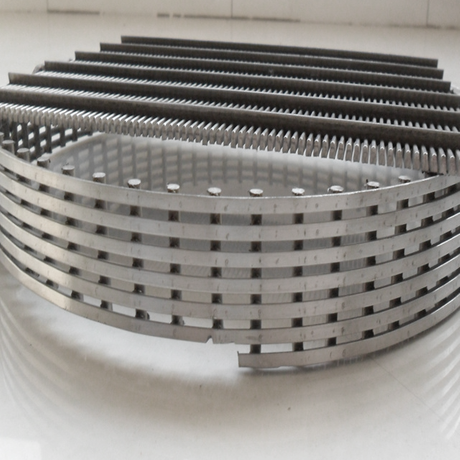

A wedge wire screen eliminates these cross-rods from the external flow path entirely. The surface profiles weld directly to internal support rods, leaving the outer face completely smooth and parallel. Without intersecting wires, there are no physical anchors for mineral scale or biological slime to grab onto, which stops encrustation from starting.
Note: Eliminating external cross-rods reduces mechanical friction and lowers the initial adhesion rate of dissolved iron oxides.
Microscopic roughness on metal surfaces provides tiny pockets where bacteria and minerals can latch on. Standard raw metals have high friction coefficients that encourage early-stage scaling.
Industrial wedge wire screens utilize high-grade, cold-rolled stainless steel profiles. This production method yields an incredibly smooth surface topography. The low friction coefficient makes it very difficult for early-stage calcium deposits or bio-films to bond with the metal, allowing the moving fluid to wash them away naturally.
A single screen design does not work for every environment. Standard off-the-shelf slotted pipes cause localized turbulence when they do not match the surrounding gravel pack or fluid chemistry.
Manufacturers can customize the slot tolerances of wedge wire systems to match specific hydrogeological conditions. By adjusting the slots to fit the exact grain size distribution and fluid velocity of an aquifer, the screen maintains a uniform flow profile. This precise engineering eliminates localized turbulence, which is a major driver of mineral encrustation.
Design Feature | Mechanical Anti-Encrustation Function | Operational Benefit |
V-Shaped Profile | Creates two-point contact to stop particle jamming | Prevents mineral crystal base formation |
Widening Slots | Allows internal clearance for all passing solids | Eliminates internal blockages and dead zones |
Large Open Area | Slower fluid entrance velocity across the surface | Prevents pressure drops that trigger scaling |
Parallel Layout | Eliminates cross-rods from the direct fluid path | Removes physical anchor points for biofilms |
Turbulent fluid flow accelerates chemical reactions by increasing the collision rate of dissolved ions. Slotted or perforated casings create chaotic eddy currents because they have irregular, sharp-edged openings.
The uniform geometric slots of a wedge wire screen help maintain a stable, laminar flow regime. Fluid passes through the smooth slots without tumbling or swirling violently. This smooth transit prevents the localized turbulence that drives the rapid oxidation and precipitation of dissolved iron and manganese.
In environments with high mineral saturation, standard screens degrade rapidly. Slotted pipes suffer from clogged openings within months, leading to reduced efficiency and eventual system failure.
Wedge wire systems resist this degradation because they target the root causes of scale formation. By balancing velocity and pressure, they maintain their open area under heavy mineral loads. This resistance extends the operational lifespan of the filtration system, often outlasting standard alternatives by several years.
Iron-oxidizing bacteria thrive in slow-moving or stagnant pockets of water. They produce a thick, gelatinous slime that mixes with mineral deposits to form a tough bio-encrustation.
Wedge wire screens prevent this by creating a high-velocity micro-climate right at the slot face. Because the open area is optimized, the fluid moves continuously across the smooth wire profiles. This steady movement disrupts the bacteria, preventing them from establishing a permanent foothold on the metal surface.
When an aquifer has extreme chemical concentrations, periodic maintenance is necessary. Standard screens make chemical cleaning difficult because their deep, recessed pockets prevent cleaning acids from reaching every clogged area.
The unobstructed open area of a wedge wire screen allows rehabilitation chemicals, like mild acids or biocides, to distribute evenly. The cleaning fluids flow through the continuous slots without leaving untreated zones behind. This complete chemical coverage ensures that all early-stage bio-fouling and scale are dissolved quickly during maintenance.
Biofilms do more than just block fluid flow; they also create localized environments where microbial induced corrosion can thrive. Anaerobic bacteria live underneath scale deposits and emit acids that pit the underlying metal.
Wedge wire systems use premium corrosion-resistant alloys combined with an open architecture that resists biofilm buildup. By preventing thick biological blankets from forming, the metal surface remains exposed to uniform fluid conditions, which stops localized microbial corrosion from destroying the screen structure.
When encrustation blocks a screen, the water level inside the well drops significantly during pumping. This severe drawdown forces the pump to work harder to lift the water to the surface, which causes energy consumption to skyrocket.
If the drawdown drops too low, air bubbles form in the fluid, leading to pump cavitation and physical damage to the impellers. By keeping slots clear of scale, wedge wire designs stabilize drawdown levels. This hydraulic efficiency protects the pump from cavitation and keeps long-term electricity costs low.
Cleaning a clogged filtration system requires taking it offline for backwashing or surging. For industrial operations, this downtime cuts into production schedules and reduces overall profitability.
The self-cleaning mechanics of wedge wire profiles minimize the frequency of these maintenance cycles. Since particles and scale cannot easily lock onto the V-shaped wires, standard operational pressures often wash away loose debris. This keeps the system online for longer periods, ensuring a continuous supply of clean water or processed fluid.
Standard slotted or perforated pipes have low initial capital expenditure costs. However, their high operational expenditure costs quickly overshadow those initial savings due to regular chemical cleanings, frequent backwashing, and premature replacements.
Investing in premium wedge wire systems changes this financial dynamic. While the initial asset cost is higher, the prevention of encrustation dramatically lowers maintenance and energy expenses over time. This makes the advanced design a more cost-effective choice for long-term industrial projects.
The type of metal used to build a screen plays a large role in how fast mineral scale can adhere to it. Grade 304 stainless steel offers basic corrosion resistance, but it can still suffer from micro-pitting in aggressive water conditions.
Grade 316L stainless steel contains molybdenum, which enhances its resistance to pitting and crevice corrosion. A smoother, unpitted surface gives mineral crystals fewer places to anchor. Choosing 316L stainless steel helps maintain surface passivation, which slows down the rate of chemical crystallization on the outer wire faces.
Geothermal energy loops and desalination plants handle highly concentrated brines at elevated temperatures. In these environments, standard stainless steel grades fail quickly due to rapid scale adhesion and stress corrosion cracking.
For these intense applications, systems utilize exotic alloys like Super Duplex or Hastelloy. These materials possess exceptional chemical stability, preventing the oxidation reactions that allow minerals to bond with the screen. This ensures reliable filtration performance even in the harshest chemical environments.
Even high-quality cold-rolled steel has tiny microscopic peaks and valleys left over from the manufacturing process. These microscopic imperfections give mineral crystals a place to grip.
Post-production electropolishing solves this issue by using an electrochemical process to remove the outer layer of metal. This treatment smooths out microscopic roughness, leaving a bright, passive surface. With zero microscopic pits available, scale and biological matter cannot stick to the wires, maximizing the anti-encrustation properties of the screen.
Deep aquifers often contain high amounts of dissolved iron, manganese, and hardness minerals. When municipal or industrial water wells use conventional slotted screens in these settings, they often clog within months.
Wedge wire systems excel in these challenging groundwater applications by maintaining a low entrance velocity and minimal pressure drop. This prevents the chemical changes that turn dissolved minerals into solid scale, keeping water supply networks running reliably without frequent failures.
Geothermal systems extract high-temperature brines that are saturated with dissolved silica and heavy salts. As the brine cools during energy production, these minerals become highly unstable and precipitate rapidly.
Standard filtration infrastructure can fail quickly under heavy geothermal scaling. The open, high-strength architecture of wedge wire screens tolerates these thermal shifts while preventing silica crystals from locking into the slots. This resilience keeps geothermal energy production loops running efficiently.
Industrial wastewater streams carry a complex mix of organic waste, chemical residues, and suspended solids. This combination creates a perfect environment for rapid biological encrustation and thick biofilm formation.
Wedge wire screens handle these heavy waste streams by utilizing their sharp V-shaped wire profiles. The continuous slots allow organic fibers to pass through without getting caught on cross-rods, while the smooth surfaces stop biofilms from blocking the system. This makes them ideal for industrial water recycling loops.
While wedge wire screens resist scaling, operators should still monitor performance to catch early fluid changes. Tracking the specific capacity of a well or filtration loop is an effective way to spot early fouling.
A gradual decrease in flow rate accompanied by a rise in drawdown indicates that fluid chemistry is shifting. Catching these minor changes early allows operators to schedule light maintenance before heavy scale can solidify on the outer slots.
When a wedge wire screen needs cleaning, it responds exceptionally well to fluid reversal and surging techniques due to its mechanical shape.
During a backwash cycle, water is pumped backward through the screen from the inside out. Because the continuous slots narrow toward the outside, the reverse flow accelerates as it exits the slot face. This high-velocity jet action lifts any loose sand, scale, or biological film off the V-shaped profiles, cleaning the screen thoroughly.
If heavy scaling occurs due to unexpected chemical spikes, operators can use mechanical brushes or mild chemical flushes to clean the system.
It is important to use these cleaning methods within safe design boundaries. Brushes should feature nylon bristles to avoid scratching the passivated stainless steel surfaces. Chemical flushes should utilize mild acids that dissolve calcium carbonate without pitting the precision-welded wire slots, preserving the smooth surface finish of the system.
Preventing encrustation requires an intentional combination of smooth geometric design, low fluid velocity, and premium material selection. A high-quality wedge wire screen addresses these engineering needs by utilizing V-shaped profiles, continuous widening slots, and large open areas that eliminate pressure drops and stop scale adhesion. This technical design transforms filtration screens from basic commodities into critical components for long-term system efficiency. For dependable performance in tough environments, operators can rely on specialized manufacturing solutions from Xinlu Wire Mesh, which delivers custom-engineered wedge wire screens designed to maximize asset lifespan and reduce operational costs.
A: A wedge wire screen is a precise filtration barrier made from V-shaped profile wires welded onto support rods to prevent clogging.
A: The wedge wire screen minimizes pressure drops and uses a two-point contact design that prevents minerals from locking into the slots.
A: Standard pipes create high pressure drops and turbulence, whereas a wedge wire screen preserves laminar flow to stop chemical precipitation.
A: Yes, a wedge wire screen built from exotic alloys reduces long-term maintenance costs, making it a highly cost-effective investment over time.
