Wire bonding stands as a cornerstone in semiconductor device fabrication, enabling connections between integrated circuits (ICs) and their packaging. Two predominant methods—ball bonding and wedge wire bonding—are instrumental in this domain. Understanding their differences is crucial for selecting the appropriate technique for specific applications. This article delves into the distinctions between these two methodologies, exploring their mechanisms, materials, and applications. It's essential for professionals in the field to comprehend these differences to optimize performance and reliability in electronic devices. For comprehensive solutions related to wire bonding equipment, professionals often turn to Wedge Wire Screen manufacturers for high-quality components.
Wire bonding is the process of creating electrical interconnections between a semiconductor device and its packaging by using fine wires. It's a critical step in the manufacturing of microelectronics and is used extensively due to its cost-effectiveness and flexibility. The wires used are typically aluminum, gold, copper, or silver, with diameters ranging from less than 10 micrometers up to several hundred micrometers for power applications.
The choice of material for wire bonding depends on the application and the required electrical and mechanical properties. Common materials include:
Gold: Preferred for its excellent electrical conductivity and resistance to oxidation.
Aluminum: Used for its cost-effectiveness and suitability for ultrasonic bonding without heat.
Copper: Offers higher thermal and electrical conductivity than gold, with cost advantages.
Silver: Less common but used for specific high-performance applications.
Ball bonding is a method where a small ball-shaped bond is formed at the end of the wire using heat and pressure before bonding it to the device. This technique is predominantly used with gold and copper wires and requires the application of heat to soften the wire. The process involves creating a free-air ball by melting the end of the wire, then pressing it onto the bond pad using a combination of ultrasonic energy, pressure, and heat.
The ball bonding process consists of several steps:
The wire is fed through a capillary and an electric flame-off creates a molten ball at the wire's end.
The ball is pressed onto the bond pad on the semiconductor device under controlled force and ultrasonic energy, forming the first bond.
The capillary is then moved to the second bonding location, forming a loop of wire.
The second bond is made by pressing the wire onto the substrate bond pad, using ultrasonic energy to create the stitch bond.
The wire is then broken off, and the process repeats for the next connection.
Ball bonding is widely used in high-speed production environments due to its fast process and suitability for fine-pitch applications. It's commonly employed in the assembly of:
Integrated circuits in consumer electronics.
Memory devices like DRAM and flash memory.
High-frequency components due to its low inductance properties.
Wedge wire bonding, also known as wedge bonding, utilizes a different approach, forming bonds using a wedge-shaped tool to press the wire onto the bond pad. This method is suitable for aluminum, gold, and copper wires and can be performed at room temperature using ultrasonic energy, though heat can be applied for thermosonic bonding.
The wedge bonding process involves:
The wire is threaded through a wedge-shaped bonding tool.
The wire is placed onto the first bond pad, and ultrasonic energy with pressure forms the first wedge bond.
The tool moves to the second bond pad, maintaining the wire at a defined angle to create the loop.
A second wedge bond is made on the second pad, and the wire is terminated.
The process repeats for subsequent bonds.
Wedge bonding is preferable in certain scenarios:
When using aluminum wire, which is suitable for ultrasonic bonding without heat.
In high-power applications requiring larger wire diameters or ribbons.
For applications where precise wire placement is critical.
In devices sensitive to contamination, since it can be performed without open flames or forming gas.
Understanding the distinctions between ball and wedge wire bonding is essential for selecting the appropriate method for a given application. Here are the primary differences:
Ball bonding forms a round ball at the end of the wire, which is then bonded to the pad, allowing for bonds in any direction. Wedge bonding creates a wedge-shaped bond and requires the wire to be fed at a specific angle, necessitating precise alignment.
Ball bonding is typically used with gold and copper wires due to the need for forming a molten ball. Wedge bonding is compatible with a broader range of materials, including aluminum and gold, and can bond larger diameter wires and ribbons suitable for high-power applications.
Ball bonding is generally faster and more suitable for high-speed automated processes, making it ideal for mass production. Wedge bonding is slower due to the need for precise wire alignment but offers greater flexibility for complex and high-reliability applications.
Wedge bonds tend to have higher mechanical strength due to the greater bond area and are preferred in applications where long-term reliability under stress is critical. Ball bonds, while strong, may not match the mechanical robustness of wedge bonds in demanding environments.
The choice between ball and wedge wire bonding often depends on the specific requirements of the application, such as current carrying capacity, mechanical stress, and production volume.
Ball bonding is extensively used in:
High-volume semiconductor manufacturing.
Consumer electronics where fine-pitch bonding is required.
Devices where production speed is a priority.
Wedge bonding is preferred for:
Power devices requiring thick wires or ribbons.
Aerospace and military applications where reliability is paramount.
Sensors and actuators needing precise bonding angles.
High-temperature environments where aluminum wire is advantageous.
Material selection plays a significant role in wire bonding. The industry has seen a shift from gold to copper wires due to cost considerations and superior electrical properties. Copper's higher thermal and electrical conductivity, along with its stability in pricing compared to gold, has made it an attractive alternative despite challenges like hardness and oxidation susceptibility.
Copper offers:
Higher conductivity, allowing for smaller diameter wires with the same performance.
Cost efficiency over gold wires.
Greater mechanical strength, enhancing bond reliability.
However, copper requires protective atmospheres during bonding to prevent oxidation. Palladium-coated copper wires are used to mitigate corrosion issues, though they present increased hardness challenges.
Aluminum wires are favored in wedge bonding for:
Cost-effectiveness and availability.
Compatibility with ultrasonic bonding without heat.
High current-carrying capacity in power applications.
Aluminum's oxide layer can pose challenges, requiring proper surface preparation and process control to ensure reliable bonds.
Wire bonding faces several challenges that impact manufacturing and long-term reliability. Factors such as material compatibility, bonding parameters, and environmental conditions play crucial roles.
Manufacturers must contend with:
Optimizing bonding parameters like force, ultrasonic energy, and temperature.
Preventing wire deformation and ensuring bond integrity.
Dealing with material-specific issues like copper oxidation or aluminum's oxide layer.
In-service reliability is affected by:
Thermal aging leading to intermetallic growth and potential brittleness.
Environmental factors like humidity causing corrosion, especially in dissimilar metal bonds.
Mechanical stresses from thermal expansion differences causing fatigue over time.
Addressing these concerns requires careful material selection, process control, and thorough testing to ensure durable connections.

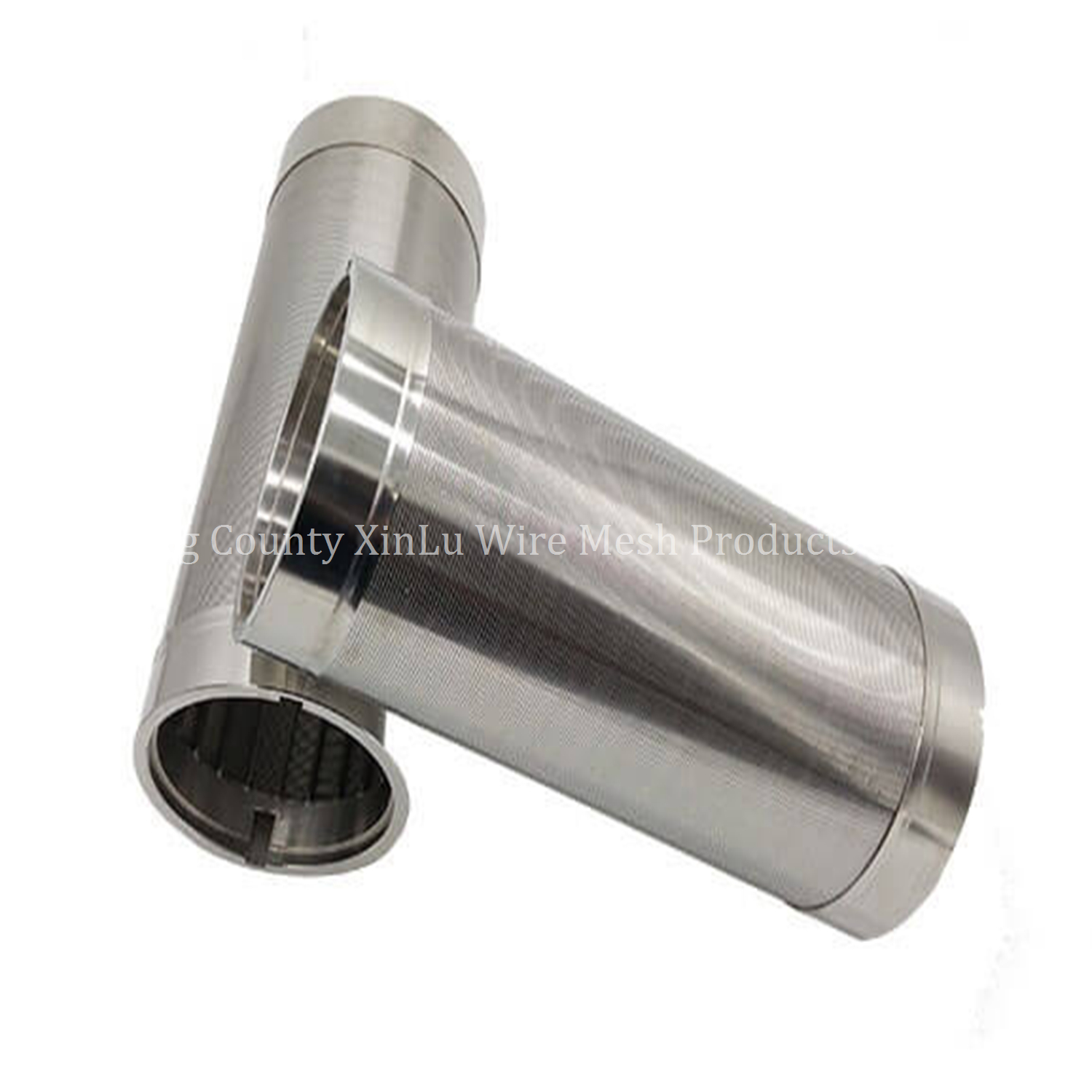

Wedge wire screens, while primarily known for filtration applications, play a significant role in the wire bonding industry. They are instrumental in manufacturing equipment that requires precise filtration and separation processes.
In the context of wire bonding, wedge wire screens are used in:
Filtration systems within bonding equipment to maintain clean operating environments.
Separating and recovering materials during wire manufacturing processes.
Ensuring the purity of gases like forming gas used in copper wire bonding.
Companies specializing in Wedge Wire Screen products provide essential components that enhance the efficiency and reliability of wire bonding equipment.
The wire bonding industry continues to evolve with innovations aimed at improving performance and addressing the challenges associated with traditional methods.
Research into alternative wire materials focuses on:
Silver Alloys: Offering high conductivity with potential cost savings over gold.
Palladium-Coated Wires: Combining the benefits of copper with corrosion resistance.
Nanoscale Materials: Exploring the use of carbon nanotubes and graphene for future applications.
Advancements in machinery have led to:
Improved accuracy in wire placement and bond formation.
Higher production speeds without compromising quality.
Integration of real-time monitoring systems for process control.
Ensuring the integrity of wire bonds is paramount. Various testing methods are employed to assess bond quality and reliability.
Mechanical tests include:
Pull Testing: Measuring the force required to break the wire bond.
Shear Testing: Assessing the bond strength by applying a shear force.
These tests help identify weaknesses in the bonding process and material defects.
Non-destructive methods involve:
Visual Inspection: Using microscopy to detect surface defects and alignment issues.
X-Ray Imaging: Revealing hidden defects and internal structures.
Acoustic Microscopy: Detecting voids and delamination within the bond interface.
Wire bonds must withstand various environmental stresses throughout their operational life. Factors such as temperature fluctuations, humidity, and exposure to harsh chemicals can adversely affect bond integrity.
Repeated thermal cycling can lead to:
Material fatigue due to expansion and contraction.
Cracking at the bond interface or within the wire.
Formation of intermetallic compounds that alter mechanical properties.
Exposure to moisture and contaminants can cause:
Corrosion of metallic bonds, leading to increased resistance or open circuits.
Oxidation layers that impede electrical conductivity.
Protective coatings and proper encapsulation can mitigate these effects.
In the ever-evolving field of microelectronics, understanding the differences between ball and wedge wire bonding is critical for engineers and manufacturers. Each method offers unique advantages and is suited to specific applications. Ball bonding excels in high-speed, fine-pitch scenarios, while wedge bonding provides robustness and flexibility for heavy-duty and high-reliability uses. Material selection, process control, and awareness of environmental impacts are essential for ensuring the longevity and performance of wire bonds. As technology advances, continued innovation in materials and bonding techniques will drive the industry forward, meeting the increasing demands for smaller, faster, and more reliable electronic devices. For those seeking high-quality components and expertise in wire bonding, partnering with specialized suppliers of Wedge Wire Screen products is a prudent choice.
Wire bonding commonly uses gold, aluminum, copper, and silver wires. The choice depends on factors like electrical conductivity, mechanical strength, cost, and the specific requirements of the application.
Copper offers higher thermal and electrical conductivity and is more cost-effective than gold. Despite being harder and more prone to oxidation, advancements in bonding technology have enabled the wider adoption of copper wires.
Wedge bonding is preferred for applications requiring larger diameter wires or ribbons, such as power electronics, and where precise wire placement is critical. It's also suitable for materials like aluminum that don't require heat during bonding.
Environmental factors like temperature fluctuations, humidity, and exposure to contaminants can lead to corrosion, oxidation, thermal fatigue, and mechanical stress on wire bonds, potentially causing failure over time.
Wedge wire screens are used in filtration systems within wire bonding equipment to maintain cleanliness and protect against contamination. They ensure the purity of materials and gases used during the bonding process.
Copper's hardness requires tighter control of bonding parameters, and its susceptibility to oxidation necessitates protective atmospheres during bonding. These challenges are managed through process adjustments and material treatments.
Bond quality is assessed using mechanical tests like pull and shear testing, as well as non-destructive methods such as visual inspection, X-ray imaging, and acoustic microscopy to detect defects and ensure reliability.
