Views: 0 Author: Site Editor Publish Time: 2026-04-20 Origin: Site
Wedge wire technology offers superior flow and structural integrity for groundwater extraction. However, its lifespan relies completely on aligning material specifications to specific environmental chemistry. You cannot guess when specifying these alloys.
Premature failure of screening infrastructure causes severe operational problems. You risk severe sand pumping and catastrophic pump wear. This ultimately leads to expensive well rehabilitation or complete well abandonment. Equipment damage happens quickly when corrosive water attacks the metal.
This guide provides a clear framework to evaluate your material options. We will help you understand environmental risks to avoid rapid degradation. You will learn to specify correct technical parameters. These steps ensure long-term, corrosion-free performance for your critical water infrastructure.
Wedge wire designs are highly corrosion-resistant only when the selected alloy matches the operational environment's chemical profile.
Standard 304 stainless steel is sufficient for benign freshwater, while 316L or specialty alloys are required for high-chloride or acidic conditions.
Structural longevity depends not just on the material, but on the precision of the manufacturing process, specifically the quality of the profile wire welds.
Successful implementation requires avoiding galvanic corrosion during installation and adhering to safe chemical rehabilitation thresholds.
Corrosive environments rapidly compromise screen slot tolerances. This leads to immediate declines in operational efficiency. When ground water attacks the metal, the precision slots enlarge irregularly. You lose the exact filtration parameters originally calculated for the aquifer.
Scaling and corrosion encrustation restrict vital flow rates. Minerals build up on the wire profiles. This blocks the open area. Consequently, drawdown increases significantly. The pump must work harder to extract the same volume of water. Energy consumption spikes as hydraulic efficiency drops.
Enlarged slots from localized pitting allow abrasive sediment intrusion. Sand and gravel bypass the compromised barrier. This abrasive material travels up the casing. It destroys expensive pump impellers and bearings. You face sudden equipment failure. The cost of replacing a damaged submersible pump often exceeds the original price of the screen.
You must match the alloy directly to your water chemistry. Standard stainless steel relies on a passive oxide layer for protection. Different grades offer varying levels of stability. Proper selection prevents catastrophic failure in standard municipal and agricultural Water Well Screens.
Grade 304 is the industry standard for benign freshwater applications. It provides excellent baseline protection against general oxidation. You will commonly see it used in municipal water supplies and agricultural irrigation. The "L" designation indicates a low carbon content. Lower carbon prevents carbide precipitation during welding.
However, 304 stainless steel has strict limitations. It remains highly vulnerable to localized pitting in aggressive water. You should never specify 304 if chloride levels exceed 200 parts per million (ppm). It also struggles in stagnant water environments where oxygen depletion occurs.
Grade 316/316L handles much harsher conditions. You need this alloy for industrial applications, coastal groundwater, and high-sulfate environments. It contains two to three percent molybdenum. This addition drastically changes the metal's performance.
Molybdenum significantly increases resistance to localized pitting. It also prevents severe crevice corrosion. If you operate near seawater intrusion zones, 316L is mandatory. It maintains structural integrity where 304 would quickly deteriorate.
Extreme environments require advanced metallurgy. Duplex stainless steels, Super Duplex, and specialized nickel alloys provide ultimate protection. They combine the best properties of ferritic and austenitic steels. You get exceptional yield strength and superior chloride resistance.
These specialty metals suit extreme industrial filtration. Highly saline aquifers and geothermal wells require them. Geothermal brines often contain extreme heat and high chlorides. Standard stainless fails rapidly here. Duplex alloys ensure the infrastructure survives these aggressive conditions.
Use this summary chart to evaluate baseline alloy capabilities against environmental threats.
Material Grade | Maximum Recommended Chlorides | Primary Application | Pitting Resistance |
|---|---|---|---|
304 / 304L | Up to 200 ppm | Freshwater, Municipal, Agriculture | Low to Moderate |
316 / 316L | Up to 1000 ppm | Coastal, Industrial, High-Sulfate | High |
Duplex / Super Duplex | > 1000 ppm | Saline Aquifers, Geothermal, Mining | Extreme |
Groundwater chemistry dictates your engineering choices. You cannot specify metals based on assumed conditions. Every aquifer possesses a unique chemical signature. This signature changes over time as seasonal flows shift.
You must conduct a comprehensive water analysis prior to specification. Gathering accurate data prevents costly mistakes. Measure the following parameters immediately after pumping a test well:
pH Levels: Acidic water (pH below 6.5) aggressively attacks standard metals. It strips away the protective oxide layer.
Dissolved Oxygen (DO): Stainless steel needs oxygen to maintain its passive layer. Low DO environments encourage severe localized corrosion.
Total Dissolved Solids (TDS): High TDS increases fluid conductivity. This accelerates galvanic reactions between dissimilar metals.
Hydrogen Sulfide (H2S): This gas creates a highly aggressive, sour environment. It causes severe stress corrosion cracking in susceptible alloys.

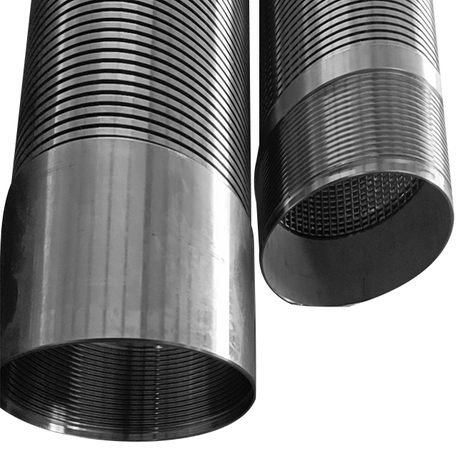

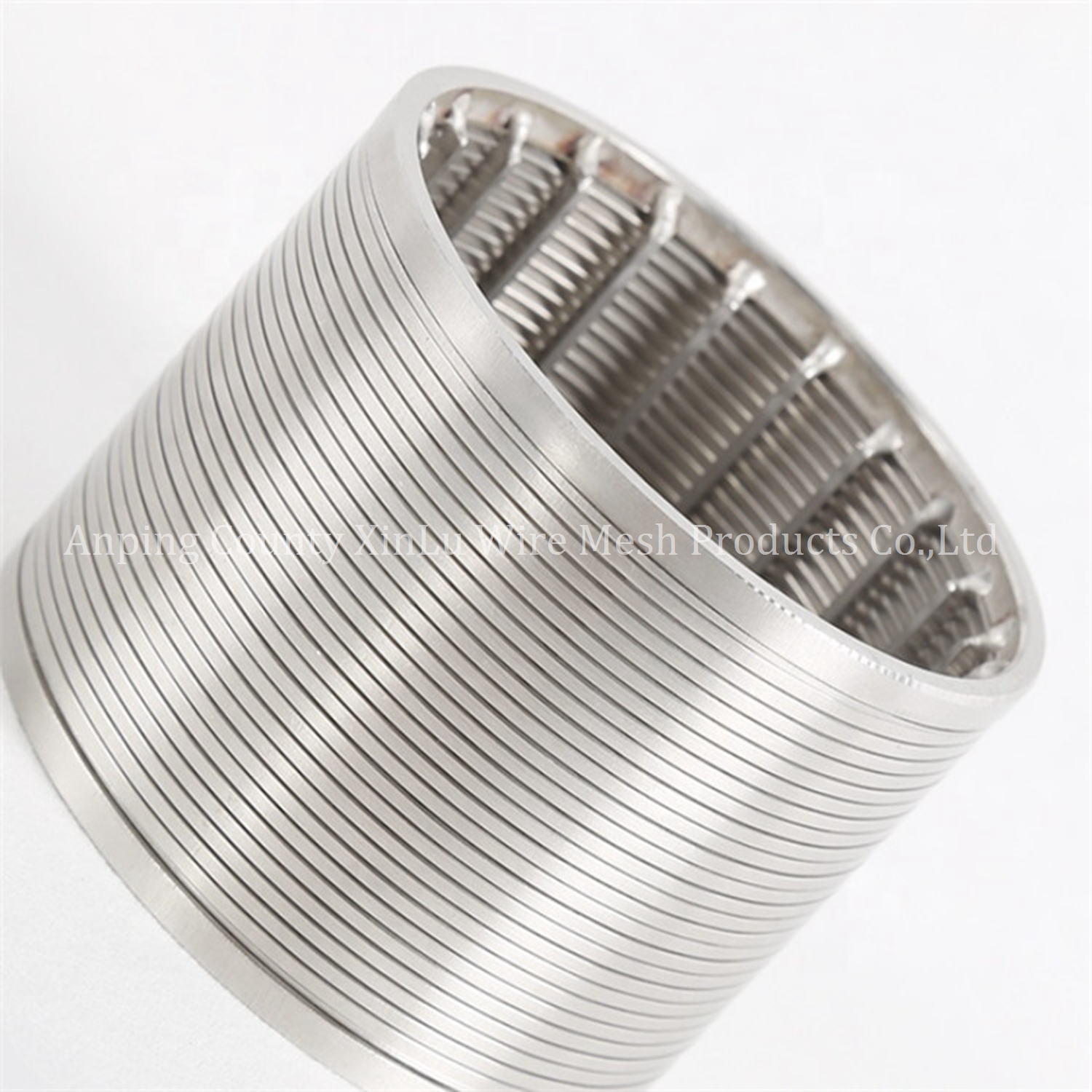

The continuous slot design of a Wedge Wire Screen Tube maintains incredible structural stability. V-shaped profile wires get welded to internal support rods. This creates a rigid cylinder. Even if minor surface oxidation occurs, the geometry prevents catastrophic collapse. The two-point contact design also resists clogging. Sand grains easily pass through the expanding inner slot.
You must balance the need for thicker wire profiles against the requirement for maximum open area. Thicker wires provide a built-in corrosion allowance. They offer more sacrificial material over decades of use. They guarantee better collapse strength in deep formations.
However, thicker profiles reduce hydraulic efficiency. Less open area increases entrance velocity. High entrance velocities pull fine silt into the well. They also trigger rapid mineral encrustation. You must work with engineers to find the perfect geometric balance for your specific aquifer.
Even the finest alloys fail if mishandled. Installation procedures often dictate long-term success. Poor field practices ruin expensive equipment before the pump even turns on.
You must understand the danger of joining dissimilar metals. A conductive fluid environment creates a galvanic cell. Connecting a standard carbon steel casing directly to a stainless steel screen guarantees trouble. The less noble metal acts as an anode. It corrodes rapidly to protect the stainless steel.
Always use dielectric couplings or compatible transition joints. Isolating the metals breaks the electrical circuit. This simple step prevents rapid failure at the connection seam.
Physical handling matters immensely. Stainless steel relies on an microscopic passive oxide layer. Scratching or gouging the screen during challenging installations compromises this barrier. Heavy handling equipment easily damages the surface.
Once the bare metal gets exposed to aggressive water, localized pitting begins immediately. Use proper lifting slings. Avoid dragging the cylinder across abrasive concrete or gravel pads. Handle the equipment carefully to preserve its chemical resistance.
Wells require routine maintenance to remove biological biofouling and mineral scale. Operators often use aggressive chemicals. You must establish strict protocols for acidizing or chlorinating wells. Excessive chemical concentrations attack the base metal.
Limit Acid Concentrations: Do not exceed manufacturer-recommended hydrochloric acid blends. High acid levels dissolve the chromium oxide layer.
Control Chlorine Exposure: Shock chlorination handles iron bacteria. However, prolonged exposure to high-ppm chlorine triggers severe pitting in 304 stainless.
Thorough Flushing: Always pump the well extensively after chemical treatments. Leaving residual acid in the casing guarantees rapid degradation.
Your screening infrastructure is only as reliable as the factory producing it. A poorly manufactured cylinder will fail, regardless of the specified alloy. You must rigorously evaluate your supply chain.
Always require Certified Mill Test Reports (MTRs). You need proof to verify exact alloy compositions. Substandard metals flood the global market. Unscrupulous vendors often substitute cheap 200-series stainless for authentic 304 or 316L.
An MTR guarantees the chemical makeup. It confirms the precise chromium, nickel, and molybdenum percentages. Partnering with a high-quality wedge wire screens manufacturer ensures full material traceability from the foundry to the final product.
Evaluate the manufacturer’s welding standards. Wedge wire relies on thousands of individual resistance welds. Poor heat treatment creates disaster. Flawed welds act as primary initiation sites for intergranular corrosion.
If the factory applies too much heat, carbon precipitates at the grain boundaries. This depletes the surrounding chromium. The weld joints literally rust away in the ground. Advanced automated welding ensures consistent heat input. It preserves the alloy's structural and chemical integrity.
Avoid vendors who only sell standard catalog sizes. Groundwater dynamics require precise customization. Select partners capable of providing exact collapse strength calculations. They must analyze the specific geological pressures of your bore hole.
They should also offer custom slot sizing based on specific aquifer sieve analysis. Sending soil samples to the factory ensures the slots block exact sand particles. This engineering support separates premium manufacturers from basic commodity brokers.
Wedge wire designs offer industry-leading corrosion resistance. However, this is only true provided the engineering specifications are strictly dictated by environmental data rather than upfront cost savings. Ignoring water chemistry guarantees rapid infrastructure failure. Proper alloy selection ensures decades of reliable performance.
Procurement and engineering teams must take immediate action before purchasing equipment. First, conduct thorough water chemistry tests to identify pH, chlorides, and TDS. Second, specify the correct stainless grade or advanced alloy based on those exact laboratory results. Finally, consult directly with certified manufacturers to finalize structural dimensions and verify material traceability. Doing so guarantees a secure, long-lasting well system.
A: When correctly matched to the water chemistry, they often exceed 25 to 50 years of service. Grade 304 lasts decades in benign freshwater. Conversely, placing the wrong alloy in aggressive, high-chloride water can cause complete failure in under three years.
A: Yes. Stainless steel is corrosion-resistant, not stain-proof. If exposed to chlorides exceeding its tolerance, or if the passive oxide layer gets damaged mechanically or chemically, localized rusting and pitting will occur.
A: You must use 316L when chloride levels exceed 200 ppm. It is also required for coastal aquifers prone to saltwater intrusion, geothermal applications, and industrial environments where severe pitting or crevice corrosion poses a risk.
A: High velocity generally benefits stainless steel by supplying fresh oxygen to maintain its passive layer. However, excessive entrance velocities pull abrasive sand against the wires, which can mechanically scour away the protective oxide layer and accelerate degradation.
