Views: 0 Author: Site Editor Publish Time: 2025-05-29 Origin: Site
Wedge wire screens are integral components in various industrial applications, serving as essential tools for filtration, separation, and retention processes. Their unique design, characterized by V-shaped profile wires welded to support rods, offers unparalleled efficiency and durability. Understanding the dimensions and sizes of Wedge Wire Screens is crucial for optimizing their performance in specific applications.
At their core, wedge wire screens consist of specially shaped wires, known as wedge wires, arranged at precise intervals to form slots or openings. These wires are typically V-shaped, which minimizes clogging and enhances the backwashing effect, ensuring easy maintenance and longevity. The screens can be manufactured in various shapes, including flat panels, cylinders, and cones, accommodating a wide range of industrial requirements.
The selection of materials for wedge wire screens is pivotal to their performance and lifespan. Common materials include stainless steel grades such as SS304, SS316L, and duplex stainless steels like 2205 and 2207. These materials offer superior corrosion resistance and mechanical strength, making them suitable for harsh industrial environments. Additionally, exotic alloys like Hastelloy C276 are employed for applications requiring exceptional corrosion resistance.
The sizes of wedge wire screens vary significantly based on their intended use. The dimensions encompass slot openings, wire diameters, lengths, widths, and overall shapes. Slot sizes can range from as fine as 5 micrometers (0.005 mm) to larger apertures of up to 15 mm, allowing for precise control over filtration processes.
Slot openings are critical parameters that determine the screen's filtration capacity. Fine slots, starting from 5 micrometers, are achieved through advanced manufacturing techniques, enabling the filtration of extremely small particles. Such precision is essential in industries like chemical processing and pharmaceuticals, where contaminant control is paramount.
The diameter of the wedge wires influences the structural strength and open area of the screen. Wire diameters can range from under 10 micrometers for fine filtration applications to several hundred micrometers for high-strength requirements. The V-shaped profile of the wires ensures minimal contact points with passing solids, reducing the likelihood of clogging and enhancing dewatering efficiency.

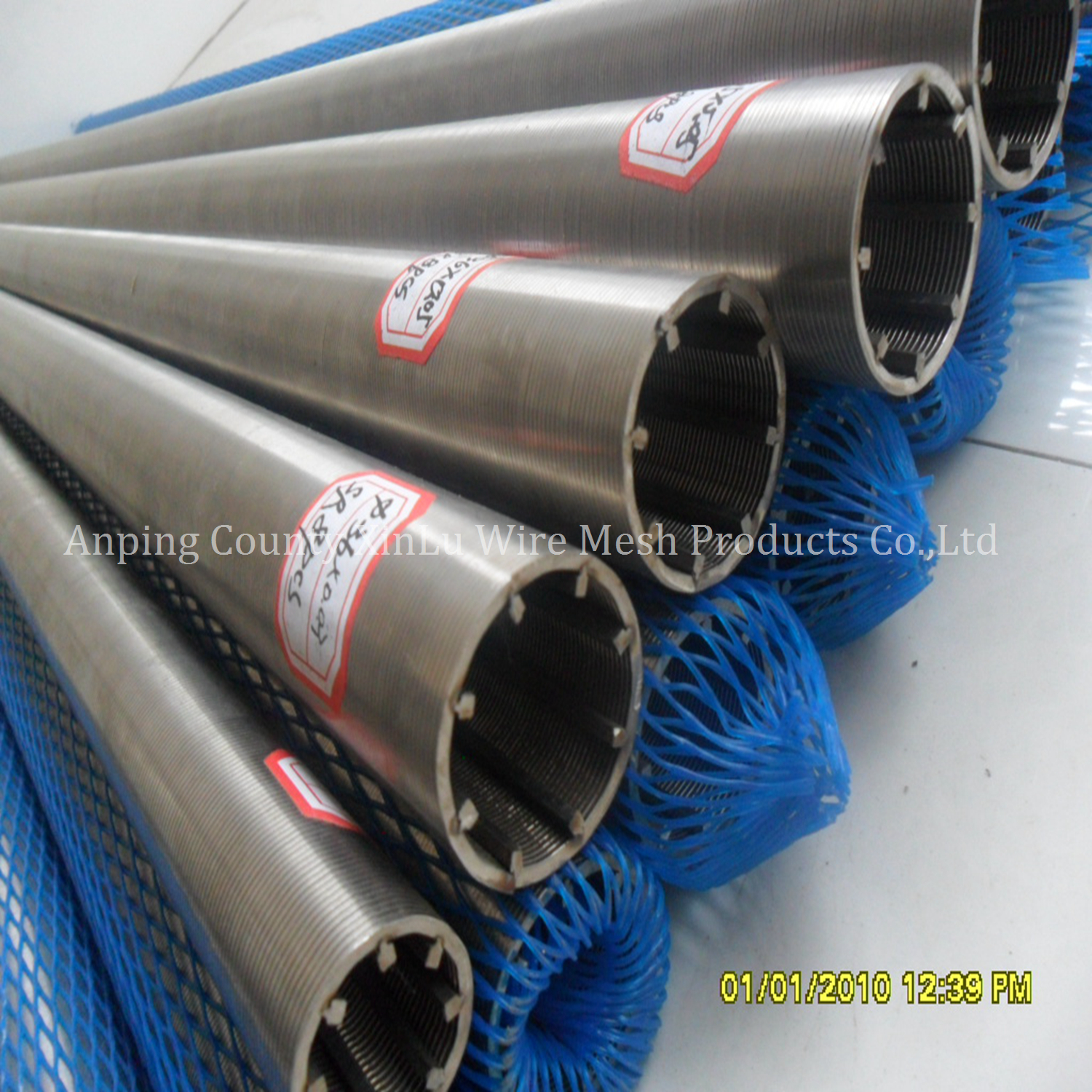

Wedge wire screens are fabricated in various shapes and sizes, including cylindrical, flat panels, conical, and custom configurations. Cylindrical screens can have diameters ranging from as small as 0.750 inches to over 52 inches, accommodating both small-scale and large-scale industrial equipment. Lengths can vary from 100 mm to 6000 mm, providing flexibility for different installation requirements.
Industrial processes often demand customized wedge wire screen solutions to meet specific operational needs. Manufacturers offer screens with tailored slot widths, wire profiles, and structural designs. For example, pressure screen baskets with minimum slot openings of 0.6 mm are available for mid to large-sized filtration equipment. Customization ensures optimal performance and integration within existing systems.
The production of wedge wire screens involves precision welding techniques where V-shaped wires are resistance welded onto support rods. This method guarantees accurate slot dimensions and structural integrity. Advanced manufacturing allows for radial slot execution, as seen in inverted screen pipes designed for inside-out flow filtration systems.
Pressure screen baskets are an example of specialized wedge wire screens. Constructed using high-quality wedge wires and advanced welding, these baskets exhibit exceptional rigidity and strength. They are essential in industries requiring robust filtration solutions, such as pulp and paper processing and wastewater treatment.

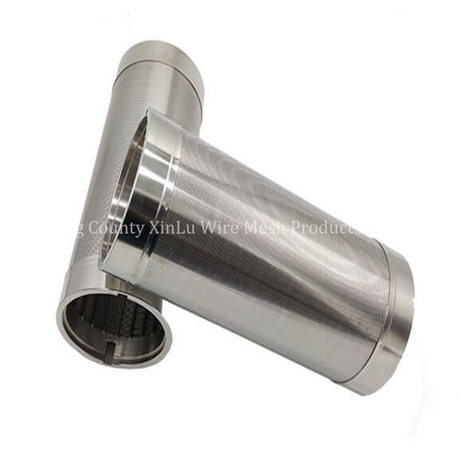

Conical screens are designed with a unique conical structure, enhancing filtering capabilities within compact spaces. These are widely used in the oil and gas industry to prevent sand and debris from entering drilling equipment. Sizes vary, with common dimensions including diameters of 38 mm to 110 mm and lengths of 515 mm to 1020 mm.
Wedge wire screens are utilized across multiple industries due to their versatility and efficiency.
In water treatment facilities, wedge wire screens serve as intake screens, preventing debris from entering water systems. Their durability and precision make them ideal for sewage treatment and environmental protection efforts.
In the oil and gas sector, these screens are critical for sand control in wells, enhancing the longevity and efficiency of drilling equipment. Screens like the inverted wire screen pipe are designed for inside-out flow, providing effective filtration in these demanding environments.
Wedge wire screens are used in breweries as lauter tun screens, facilitating the separation of wort from mash solids. They are tailored to specific slot sizes and joint configurations, ensuring optimal filtration and product quality.
The mining industry employs wedge wire screens for dewatering and classification processes. Their ability to withstand abrasive materials and heavy loads makes them suitable for coal and mineral separation.
Wedge wire screens offer several benefits that contribute to their widespread adoption in industrial applications.
The V-shaped profile of the wires reduces contact points with solids, minimizing the risk of clogging. This design enhances the dewatering process and simplifies maintenance procedures.
Constructed from robust materials like stainless steel and exotic alloys, wedge wire screens are capable of withstanding high pressures and corrosive environments. This durability translates to longer service life and reduced operational costs.
Manufacturers offer extensive customization options, allowing for precise control over slot sizes, shapes, and materials. This flexibility ensures that the screens can meet the exact requirements of any given application.
Maintaining wedge wire screens is straightforward due to their design. The backwashing effect inherent to the V-shaped wires aids in removing clogs, and the screens' structural integrity allows for easy handling during maintenance. This reliability is essential for industries where downtime can lead to significant losses.
Advancements in manufacturing have led to the development of fine wedge wire screens, capable of filtering particles as small as 5 micrometers. These fine screens are crucial in processes requiring ultra-precise filtration, such as microfiltration in chemical and pharmaceutical industries.
Understanding the sizes and specifications of wedge wire screens is essential for selecting the right screen for a particular application. Their versatility, durability, and efficiency make them indispensable in numerous industries. By tailoring the dimensions and materials, industries can optimize their processes, ensuring longevity and cost-effectiveness. For those seeking high-quality, customized wedge wire screens, exploring specialized manufacturers can provide solutions that meet specific operational needs.
Wedge wire screens come in various standard sizes, with slot openings ranging from 5 micrometers up to 15 mm. Diameters for cylindrical screens can range from 0.750 inches to over 52 inches, and lengths can vary from 100 mm to 6000 mm. Custom sizes are also available to meet specific application requirements.
The V-shaped wire design minimizes contact points with solids, reducing clogging and enhancing the backwashing effect. This results in easier maintenance, improved dewatering efficiency, and prolonged service life of the screens.
Yes, wedge wire screens can be fully customized in terms of slot size, wire profile, material, shape, and dimensions. Manufacturers work closely with clients to develop screens that meet the precise requirements of their industrial processes.
Common materials include stainless steel grades such as SS304 and SS316L, duplex stainless steels like 2205 and 2207, and exotic alloys like Hastelloy C276. These materials offer excellent corrosion resistance and mechanical strength suitable for various industrial environments.
Industries such as water and wastewater treatment, oil and gas, food and beverage processing, mining, and chemical processing extensively use wedge wire screens for their filtration and separation needs due to their efficiency and durability.
Maintenance involves regular inspection and cleaning. The design of the screens facilitates easy removal of clogs through backwashing. Their sturdy construction allows for handling during maintenance without compromising structural integrity.
Yes, advancements like fine wedge wire screens have improved performance by allowing filtration of particles as small as 5 micrometers. Such innovations have expanded the applicability of wedge wire screens in high-precision processes in various industries.
