Agricultural irrigation relies heavily on two critical operational variables. These are consistent water reliability and ongoing energy consumption. You cannot manage a profitable farming operation if your well fails to deliver. You also cannot succeed if your electricity bills continually skyrocket. While many view the well intake simply as a physical barrier against rocks and dirt, this component dictates the hydraulic efficiency of your entire pumping system. Upgrading to engineered Water Well Screens is a measurable structural investment. It is not merely a basic sediment filtration choice. Proper screens directly lower specific drawdown within the aquifer. They reduce the electrical consumption required to lift water to the surface. Furthermore, they extend your expensive pump's lifecycle by keeping abrasive elements out of the casing entirely. In this comprehensive guide, we will explore exactly how the right intake technology transforms a standard agricultural well into a highly efficient, long-lasting asset.
System Efficiency: High open-area screens lower entrance velocity, minimizing friction head loss and reducing electrical pumping costs.
Structural Prevention: Engineered continuous-slot designs eliminate the "vicious cycle" of sediment intrusion, preventing pump impeller degradation.
Total Cost of Ownership (TCO): Higher upfront capital on premium screens is typically offset by multi-decade savings in electricity and avoided pump replacements.
Sizing Accuracy: Optimal performance requires precise slot sizing based on geological sieve analysis (the 40–60% retention rule).
Many poorly designed agricultural wells operate at an abysmal 45% efficiency or lower. Operators often accept this poor performance as normal. They fail to realize the massive financial drain it causes behind the scenes. When a well operates inefficiently, it restricts natural water flow. This restriction forces surface equipment to work exponentially harder just to maintain baseline irrigation quotas. When well yield drops, operators often make a critical operational mistake. They tend to over-pump the well to meet immediate crop demands. This reactive action creates a dangerous cascading effect known as the vicious cycle of sediment. We can break this cycle down into three destructive phases:
Unsafe Suction Velocity: Low-yielding wells prompt operators to increase pumping volume. This generates unusually high suction velocities at the intake point.
Formation Destabilization: These high speeds destabilize the surrounding geological formation. Consequently, fine sand and clay pull forcefully into the well casing instead of remaining suspended in the aquifer.
Mechanical Abrasion: This sediment acts like coarse sandpaper. It aggressively destroys pump impellers, bearings, and internal seals. As the pump degrades, yield drops further, leading to even more desperate over-pumping and soaring maintenance costs.
There is also a hidden energy tax tied directly to inferior equipment. Cheap, low-open-area casings create severe localized flow restrictions. Examples include torch-cut or mill-slot pipes. Water struggles to squeeze through tiny, sparse openings. This struggle creates "artificial drawdown." The dynamic water level inside the pipe drops much lower than the actual water level in the surrounding earth. Your pump must then work against this unnecessary head pressure. Every extra foot of lift demands more horsepower. This translates directly to wasted electricity day after day.

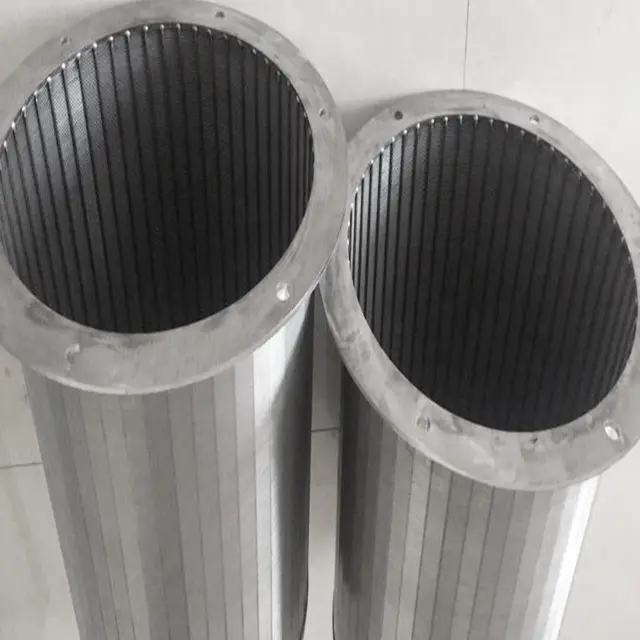

When specifying equipment, you must objectively compare the standard screen geometries available. Not all designs perform equally in high-capacity agricultural environments. Let us evaluate the primary solution categories on the market today. Mill-Slot & Perforated Pipe These offer very low open area, often less than 4%. Manufacturers simply cut vertical or horizontal slits into standard steel pipes. They are highly prone to localized galvanic corrosion and rapid clogging. We do not recommend them for high-capacity agriculture because they create massive friction loss. Bridge-Slot & Shutter (Louver) Screens These provide better structural strength for deep rock wells. Manufacturers punch the metal outward to create louvered openings. However, their open area remains limited, typically hovering between 8% and 12%. Furthermore, they are highly susceptible to blinding in natural formations rich in fine sand. Sand grains easily lodge within the overlapping metal louvers. Continuous Wire-Wrap (Wedge Wire) Screens These stand as the absolute industry standard for high-efficiency irrigation. They feature a unique V-shaped surface wire welded to robust internal support rods. The slot is narrowest at the outside and widens inward. This specific geometry naturally prevents particulate wedging. If a grain of sand passes the outer lip, it shoots cleanly through into the pipe. It cannot get stuck halfway. The most striking difference lies in the open area advantage. Continuous slot designs easily achieve 30% to over 37% open area. This capacity is often 3 to 15 times higher than conventional alternatives. It provides the pump with maximum, unhindered access to the aquifer.
Screen Type | Typical Open Area | Clogging Risk | Best Agricultural Use Case |
|---|---|---|---|
Mill-Slot / Perforated | < 4% | Very High | Low-yield domestic only; not recommended for Ag. |
Bridge-Slot / Shutter | 8% - 12% | Moderate to High | Deep bedrock wells without fine sand presence. |
Continuous Wire-Wrap | 30% - 37%+ | Very Low | High-capacity irrigation in unconsolidated aquifers. |
Selecting the proper hardware requires strict adherence to engineering standards. You cannot guess the parameters based on local tradition. You must rely on physical data. The foremost design objective is entrance velocity. You must keep water entrance velocity below 0.1 ft/sec (or 3 cm/sec). Staying below this threshold minimizes friction loss drastically. It also prevents mineral encrustation triggered by sudden pressure drops. When water accelerates violently through a tiny hole, the pressure drops instantly. This drop causes dissolved minerals like calcium carbonate to precipitate out and form hard scale on the metal. Most importantly, low velocity stops the aggressive migration of fine sand into your casing. You must also evaluate mechanical strength requirements thoroughly. A screen faces immense physical stress underground.
Tensile Strength: The unit must support the hanging weight of the entire casing assembly above it. Furthermore, it must endure drag forces from gravel packing. As gravel drops down the annulus, friction can add 10% to 25% extra load to the structure.
Collapse Strength: The screen must withstand sudden horizontal geological stresses. If shifting occurs in the gravel pack, weak casings will buckle inward instantly.
Column Strength: This factor is crucial for proper installation alignment. We strongly recommend using centering guides every 40 feet. Without them, the casing can tilt. A tilted pipe suffers catastrophic column strength drops and makes pump installation nearly impossible.
Finally, you must apply precise geological sizing rules. You size screens via strict sieve analysis of the drill cuttings. The golden rule is to retain 40% to 50% of the natural formation sand. This specific retention rate allows finer silt and micro-sand particles to pass through during the initial well development phase. Once operators pump those fine particles out, the remaining coarse particles form a highly permeable natural gravel pack around the intake. This natural barrier further filters the incoming water permanently.
We must shift our focus from technical specifications to actual financial outcomes. The economics heavily favor engineered solutions over cheap pipes. You must view this through the lens of long-term operational savings. Consider the pumping energy savings first. There is a strict formulaic relationship between dynamic drawdown, system pressure, and required motor horsepower. A high-efficiency screen significantly reduces dynamic drawdown. Because water flows freely into the pipe, the water level remains relatively high. Reducing your pumping lift requirement by even 20 to 30 feet creates a massive mechanical advantage. It allows you to specify a smaller horsepower pump motor from day one. This choice compounds into substantial daily electricity savings over a 20-plus year lifespan. You burn fewer kilowatts every single hour the irrigation system runs. Furthermore, we must look at maintenance and lifecycle costs. Reduced sediment intrusion means eliminating frequent, costly well rehabilitation. You avoid hiring rigs to perform harsh chemical treatments previously needed for heavy mineral encrustation. More importantly, you stop premature pump replacements. Pulling a deep-well pump costs thousands of dollars in rig time alone, ignoring the cost of new impellers. When impellers spin in clean water rather than a sandy slurry, they simply do not wear out prematurely.
Agricultural operators and well drillers need a clear shortlisting logic. You should not buy this critical infrastructure from generic hardware suppliers. You need a specialized high-quality wedge wire screens manufacturer who understands hydrogeology. First, assess their customization capabilities. A reliable partner offers specific slot sizes tailored exactly to your site. Based on your sieve tests, you might need a Slot 10 (0.010 inches) or perhaps a Slot 30 (0.030 inches). An excellent manufacturer builds the product to order to match your geological data perfectly. They never force you to accept off-the-shelf, generalized components. Second, look for profound material selection expertise. They must possess the ability to recommend the correct metallurgical grade. Depending on your local groundwater chemistry, you may need 304 stainless steel, 316L stainless steel for high chlorides, or specialized PVC. This exact matching prevents rapid galvanic corrosion. Mixing incompatible metals underground leads to rapid structural failure. Finally, demand robust support for well development. Excellent manufacturers understand a screen works only as well as its installation. Look for vendors who provide concrete technical guidance on post-installation well development. They should advise you clearly on the mechanical benefits of surging blocks versus high-pressure water jetting. Proper development pulls the fine sand through the slots early, ensuring the well runs clean for decades.
Selecting proper filtration hardware is a foundational infrastructure decision. It is never a simple commodity purchase. Settling for inferior, low-open-area designs artificially caps the maximum yield of your well. It also bakes permanently higher electricity costs into your daily farm operations. By understanding entrance velocities, open area geometry, and structural strength, you protect your entire irrigation investment. To secure your water supply effectively, follow these specific next steps:
Conduct a comprehensive geological sieve analysis before purchasing any casing materials.
Define your target entrance velocity strictly below 0.1 ft/sec to prevent scaling and sand intrusion.
Consult with an expert manufacturer to run a drawdown-to-energy-savings projection for your specific site.
Finalize your procurement only when you have exact slot size, mechanical strength limits, and alloy recommendations in writing.
A: There is no universal size. It must be dictated by geological sieve tests, generally aiming to retain 40-60% of the natural aquifer sand or 90% of an artificial gravel pack. Typical residential or light agricultural sizes range from Slot 10 (0.010") to Slot 30 (0.030").
A: Higher open area translates to lower resistance for water entering the casing. Less resistance means the dynamic water level drops much less during pumping. Consequently, your system requires less horsepower to lift the water to the surface, significantly saving daily energy costs.
A: Preventative maintenance includes keeping entrance velocities low to avoid initial encrustation. If fouling occurs, physical agitation like mechanical surging helps drastically. You can combine this with targeted chemical treatments, such as sulfamic acid for mineral scale, left static for 12+ hours. Avoid single-directional over-pumping, as it rarely cleans the entire surface.
