In the complex and demanding world of industrial filtration, selecting the appropriate equipment is paramount to achieving optimal operational efficiency, maintaining fluid purity, and minimizing system downtime. Engineers and facility managers are constantly evaluating different filtration components to determine which designs offer the best performance for their specific applications. Among the most critical components in these systems are the screening elements used to separate solids from liquids or gases. A frequent subject of technical evaluation is the comparison between different tube designs, specifically focusing on the V wire screen tube and its traditional counterparts. Understanding the intricate differences between these two fundamental designs is essential for optimizing process flows, ensuring equipment longevity, and achieving precise particle separation in harsh industrial environments.
The V wire screen tube has emerged as a highly engineered solution designed to overcome many of the limitations associated with older filtration technologies. By utilizing a specialized continuous slot design, this type of screen provides exceptional open area and structural stability. When facility operators look to upgrade their systems, they often seek a reliable wedge wire screen tube supplier to provide components that can withstand high pressures and corrosive environments. Conversely, traditional round screen pipes have been used for decades and offer a different set of structural characteristics. While both serve the fundamental purpose of filtration, their manufacturing processes, structural geometries, and fluid dynamic profiles differ significantly. This comprehensive analysis will explore the defining characteristics, material specifications, structural variations, and primary industrial applications of these essential filtration components.

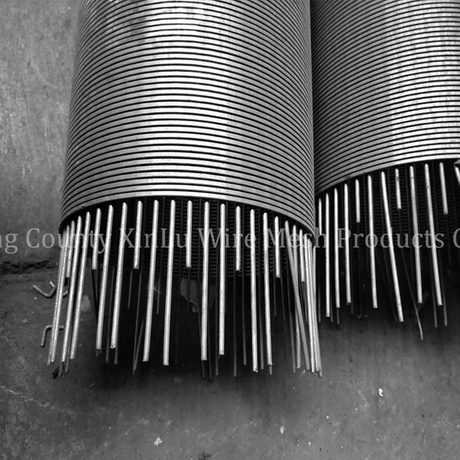

To fully appreciate the differences between various filtration pipes, one must first examine the core engineering principles behind the V wire screen tube. This advanced filtration component, notably exemplified by the Xinlu V Wire Screen Tube manufactured by Anping County Xinlu Wire Mesh Products Co., Ltd. (Model/Code: 84212990), represents a significant leap forward in separation technology. The defining characteristic of this tube is its continuous slot design, which is created by wrapping a V-shaped or wedge-shaped wire around an internal array of longitudinal support rods. This unique geometric configuration ensures that the slots widen inwardly, creating a non-clogging surface that allows particles that pass through the initial aperture to flow freely through the rest of the screen without becoming trapped.
The continuous slot design of the V wire screen tube ensures uniform aperture distribution across the entire surface area of the cylinder. This uniformity is critical for accurate fluid filtration, as it guarantees consistent flow rates and prevents localized pressure drops that could compromise the integrity of the filtration system. The tubular structure is specifically engineered to support convenient installation, cleaning, maintenance, and replacement, thereby reducing the overall total cost of ownership for industrial facilities. Furthermore, the robust construction allows the tube to withstand significant differential pressures, making it suitable for deep-well applications and high-pressure chemical processing environments where structural failure is not an option.
The versatility of the V wire screen tube is further enhanced by the multiple construction types available to meet diverse industrial requirements. Depending on the direction of fluid flow and the specific mechanical stresses of the application, engineers can specify different wire orientations. The standard construction typically involves the V-wire wrapped on the outside of the support rods, with the flat face of the wire facing outward. However, for applications requiring specialized flow dynamics, inverted wire constructions are available. In these configurations, the flat face of the V-wire faces inward, which is particularly useful for inside-to-outside flow patterns.
Additionally, advanced designs include internal axial wire and internal circumferential wire configurations. These specialized structures provide enhanced internal support and alter the fluid dynamics within the tube, allowing for highly customized filtration solutions. The ability to tailor the construction type ensures that the screen tube can be perfectly matched to the specific usage environment and pressure requirements of the system. Tube thickness, for instance, is not a one-size-fits-all parameter; it is meticulously tailored to withstand the anticipated mechanical loads, ensuring long-term reliability and preventing catastrophic collapse under high-pressure conditions.

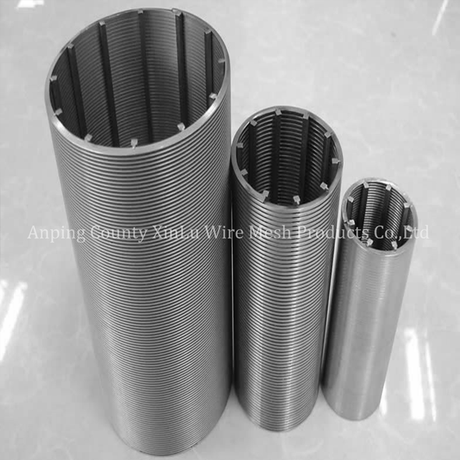

While the continuous slot design offers numerous advantages, it is also important to understand the role of traditional round screen pipes in industrial applications. A pure round screen pipe for fluid management typically utilizes a different manufacturing approach, often involving perforated metal sheets or woven wire meshes formed into a cylindrical shape. These pipes are characterized by their uniform, circular perforations or square mesh openings, which provide a straightforward barrier to solid particles. The structural integrity of a round screen pipe relies heavily on the thickness of the base material and the pattern of the perforations.
Round screen pipes are often selected for applications where extreme precision in slot geometry is less critical, or where the primary goal is bulk straining rather than fine, non-clogging filtration. Because the openings in a round screen pipe do not typically widen inwardly like a V-wire design, they can be more susceptible to blinding or clogging when dealing with irregularly shaped particles or high concentrations of sticky solids. When a particle becomes lodged in a straight-sided perforation, it can block the flow path entirely, necessitating more frequent cleaning cycles and potentially causing undesirable pressure spikes within the system.
The structural differences between these two designs have profound implications for fluid dynamics and overall system performance. The welded intersections of the V-wire and support rods create a highly rigid structure that resists deformation under stress. This rigidity allows for a higher percentage of open area compared to traditional perforated round pipes of similar strength. A larger open area translates directly to lower pressure drops across the screen, reduced energy consumption for pumping systems, and increased overall throughput.
In contrast, maximizing the open area in a round screen pipe often requires increasing the number or size of the perforations, which can significantly weaken the structural integrity of the cylinder. Therefore, engineers must carefully balance the need for flow capacity with the mechanical strength required to prevent collapse. The V-wire design elegantly solves this optimization problem by decoupling the open area from the structural strength, utilizing deep support rods to provide rigidity while the surface wire maximizes the filtration area.
The performance and longevity of any filtration component are heavily dependent on the materials used in its construction. Industrial environments frequently expose screens to highly corrosive fluids, extreme temperatures, and abrasive particulates. To combat these harsh conditions, the Xinlu V Wire Screen Tube is available in an extensive array of high-performance materials. Standard stainless steel options include 304, 304L, 316, 36L, and 321, which offer excellent general corrosion resistance and mechanical strength for a wide range of water treatment and processing applications.
For more aggressive environments, such as those found in offshore oil and gas extraction or severe chemical processing, specialized alloys are necessary. The availability of Duplex stainless steel 2205 and 2207 provides superior resistance to stress corrosion cracking and pitting. In the most extreme chemical environments, Hastelloy alloys C and Titanium alloy can be specified to ensure maximum durability and chemical inertness. For less demanding, cost-sensitive applications, carbon steel wire Q195 or Q235 is also available. To further improve corrosion and wear resistance, these tubes can undergo specialized surface treatments, including polishing and sandblasting, which smooth the surface and remove microscopic imperfections where corrosion might initiate.
Industrial filtration systems are rarely uniform; they require components that can be precisely integrated into existing infrastructure. A professional custom screen tube manufacturing service is essential for providing tailored solutions that meet exact engineering specifications. The V-wire tubes are highly customizable in dimensions, ensuring a perfect fit for any application. Standard length options are typically 3m or 6m, but custom adjustments are readily available to specific lengths such as 2.9m or 5.85m to accommodate unique housing requirements.
The diameter of the screen is equally critical for flow capacity and system integration. These tubes can be manufactured with inner and outer diameters ranging from a compact 1 inch up to a massive 20 inches. Furthermore, standard size variations are available in 2", 3", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12", 14", 16", or 20" configurations. This extensive range of sizes ensures that whether the application involves a small-scale pharmaceutical process or a massive municipal water intake, an appropriately sized screen tube can be engineered and deployed.
The fundamental purpose of a screen tube is to separate particles of a specific size from a fluid stream. The precision of the slot aperture is therefore the most critical specification of the component. The continuous slot design allows for incredibly precise control over the aperture size during the manufacturing process. Slot aperture sizes can be specified anywhere from an ultra-fine 0.002" up to a coarse 0.2", allowing engineers to target exact particle classifications.
In addition to the aperture size, the pattern of the slots can also be customized. Standard slot patterns include 0.010", 0.020", 0.030", 0.040", 0.060", 0.080", and 0.10". These slots can be arranged in straight or wavy patterns, depending on the specific fluid dynamics and particle characteristics of the application. Wavy patterns, for example, can sometimes provide additional structural stability or alter the flow characteristics to prevent localized scouring or uneven wear on the screen surface.
The superior design and customizable nature of these advanced filtration tubes make them indispensable across a wide spectrum of heavy industries. Each sector presents unique challenges, from extreme pressures in subterranean environments to strict hygiene requirements in food processing. The adaptability of the continuous slot design allows it to meet and exceed the rigorous demands of these diverse applications.
In the oil and gas industry, filtration and separation are critical for protecting expensive downstream equipment and ensuring the purity of the extracted resources. Screen tubes are deployed in sand control applications within wellbores, where they prevent abrasive formation sand from entering the production tubing. The high strength of the V-wire design prevents collapse under immense subterranean pressures, while the continuous slot ensures maximum hydrocarbon flow. Similarly, in chemical processing plants, handling process fluids safely and efficiently is paramount. The availability of exotic materials like Hastelloy C and Titanium allows these screens to filter highly aggressive acids and solvents without degrading, ensuring continuous, safe operation of the chemical plant.
Municipal and industrial water treatment systems rely heavily on robust filtration to remove suspended solids and biological matter. Utilizing a V wire screen tube for industrial filtration in these settings is proven to improve filtration efficiency and significantly reduce clogging compared to traditional round perforated pipes. The non-blinding nature of the inward-widening slots means that water intake screens require less frequent backwashing, saving energy and water. In mining operations, these tubes are utilized for particle classification and solid-liquid separation, effectively dewatering slurries and recovering valuable minerals. Furthermore, the smooth, easily cleanable surface of polished stainless steel variants makes them ideal for filtration in food and pharmaceutical processing environments, where hygiene and the prevention of bacterial buildup are absolute necessities.
The total cost of ownership for industrial equipment is not determined solely by the initial purchase price, but also by the costs associated with installation, maintenance, and operational downtime. The tubular structure of these advanced screen tubes is specifically designed to support convenient installation. Their rigid construction allows them to be easily maneuvered and integrated into existing housings without the need for excessive internal support structures that might impede flow.
Maintenance and cleaning are also significantly streamlined. Because the continuous slot design resists clogging and blinding, the frequency of required cleaning cycles is drastically reduced. When cleaning is necessary, the smooth exterior surface (especially when treated with polishing or sandblasting) allows for effective backwashing or mechanical scraping without damaging the screen. This ease of maintenance, combined with the exceptional durability of the materials and construction, ensures a long operational lifespan, reducing the frequency of replacement and minimizing costly system downtime.
The Xinlu V Wire Screen Tube represents a highly engineered, customizable solution for demanding industrial filtration applications, offering significant advantages over traditional round screen pipes through its continuous slot design, uniform aperture distribution, and robust tubular structure. With extensive material options ranging from standard 304 stainless steel to advanced Titanium alloys, precise slot apertures from 0.002" to 0.2", and highly adaptable dimensions (1" to 20" diameters, up to 6m lengths), it provides exceptional fluid management, reduces clogging, and ensures reliable solid-liquid separation across the oil and gas, water treatment, chemical processing, mining, and pharmaceutical industries.
